Master Trees: The Complete Guide to Coding Interviews: Harshpreet Singh

All the images in this article are made by me :)

From basic traversals to complex dynamic programming solutions trees can be found everywhere, yes even in your interviews 😊. Here is a guide to know all about what tress are, types of trees and the common questions.

What is a Tree?

Its it a hierarchical, non-linear data structure that consists of nodes connected by edges and it doesn't contain any cycles! Otherwise, it would become a proper graph. (Tree is still a graph just with no cycles!). They resemble the natural trees we look at. Even though I think many programmers don't look at trees that often…

Common Tree Terminologies:

Node: Building block of a tree. Each node contains data and references (or pointers) to its child nodes.

Root: The topmost node in the tree. Every tree has exactly one root and is called a Rooted tree.

Edge: The connection between two nodes.

Child: A node that is a descendant of another node or parent.

Parent: A node that has children.

Leaf: A node that has no children.

Subtree: A tree formed within a tree but with a different root.

Depth: The number of edges from root to the node.

Height: The number of edges from the node to the deepest leaf.

Types of Trees:

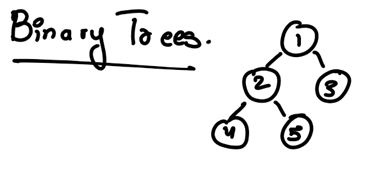

Binary Tree: (Our most commonly used tree along with BSTs) Each node has at most 2 children, left and right.

Binary Tree

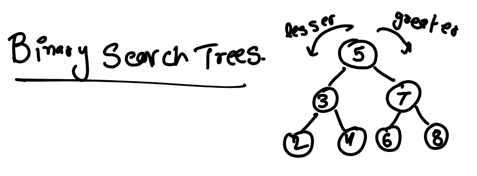

Binary Search Tree (BST): A binary tree but with the additional property that the left subtree of a node contains only nodes with values less than the node's value and the right subtree contains nodes with values greater that the node's value.

Binary Search Tree

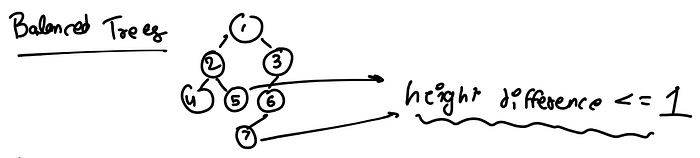

Balanced Trees: These are a type of trees that ensure that the tree height (optimally ≤ 1) is kept low to maintain efficient operations like search, insertion and deletions. AVL trees maintain a STRICT balance, while Red Black are a little relaxed.

Balanced Trees

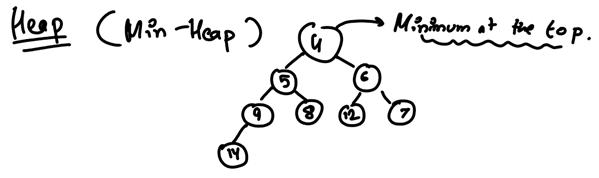

Heap: A special binary tree used to implement Priority Queues, heaps are Min-heap or Max-heap, where the root node is minimum or maximum.

Heap

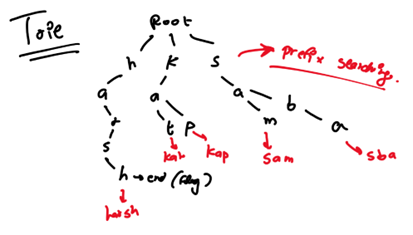

Trie (Prefix Tree): A tree used to store strings where each node represents a character of the string. It's useful for fast lookups, autocomplete feature (yes really) and dictionary type problems.

Trie

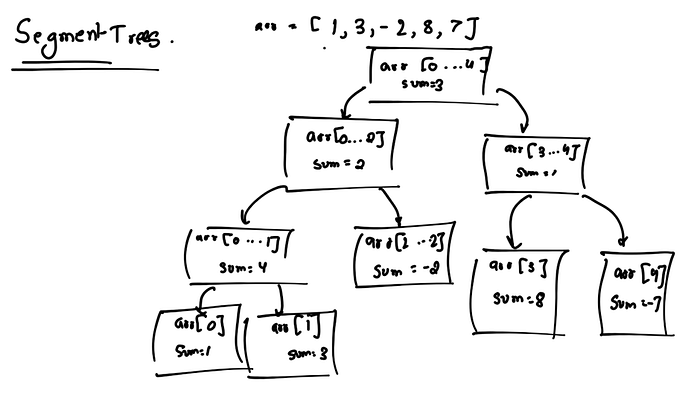

Segment Tree: Used to store intervals or segments. (Used in range problems)

Example taken from -> Segment Tree — Algorithms for Competitive Programming

N-ary Tree: Trees with n children. Like Trie can be a 26-ary Tree.

Tree Traversal Algorithms:

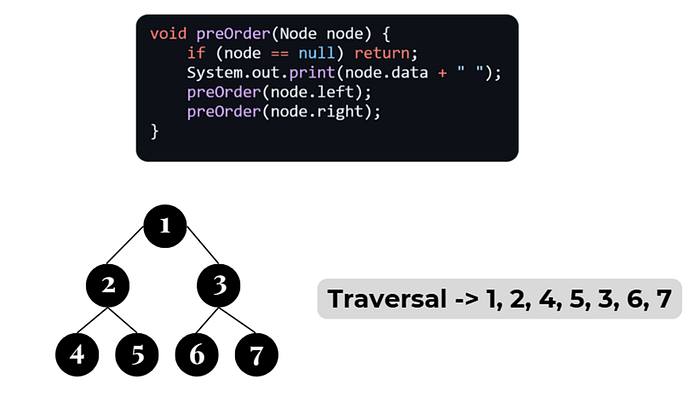

Pre-order Traversal (Root -> Left -> Right):

Pre-order Traversal

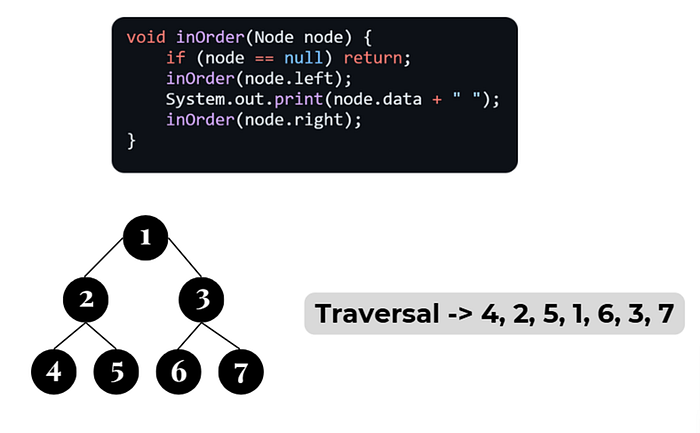

In-order Traversal (Left -> Root -> Right):

In-order Traversal

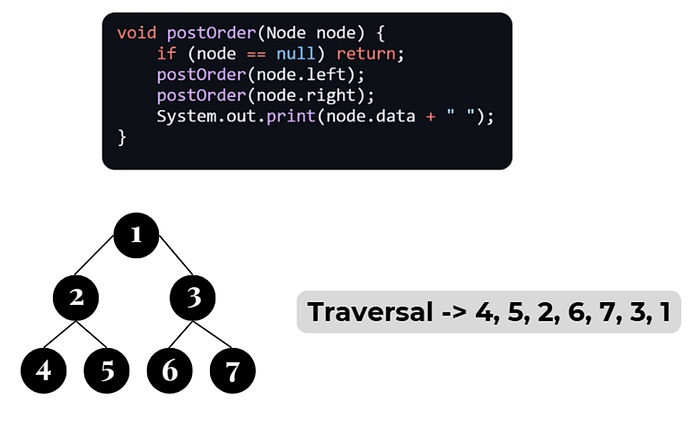

Post-order Traversal (Left -> Right -> Root):

Post-order Traversal

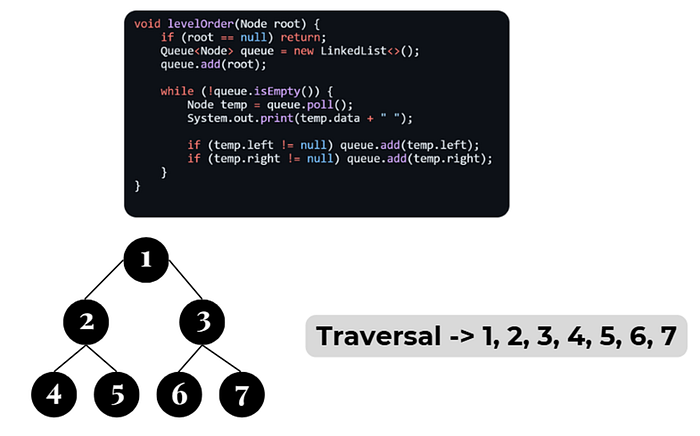

Level-order Traversal (Breadth-First-Search):

Level-order Traversal

In this Article, I will discuss everything to know about Binary Search Trees… For the rest of the tree versions, I will make more Articles 😊!

Binary Tree

A binary tree is a hierarchical data structure in which each node has at most two children. These children are referred to as the left child and the right child.

Key Properties

Maximum Number of Nodes at Level 'L': A binary tree at level 'L' can have a maximum of 2^L nodes.
Maximum Number of Nodes in a Binary Tree with Height 'h': The maximum number of nodes in a binary tree is 2^(h+1) − 1, where h is the height of the tree.
Minimum Height of a Binary Tree with 'n' Nodes: The minimum height of a binary tree with 'n' nodes is log_2(n+1)−1.

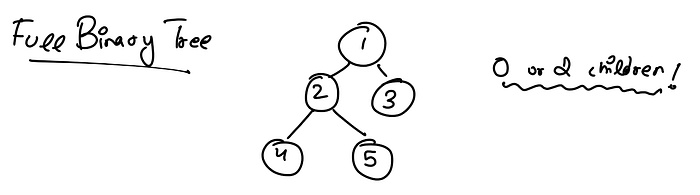

Full Binary Tree: Every node has either 0 or 2 children.

Full Binary Tree

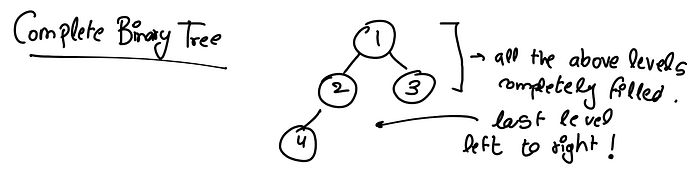

Complete Binary Tree: All levels are fully filled except for possibly the last level, which is filled from left to right.

Complete Binary Tree

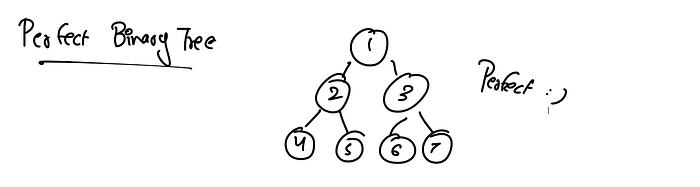

Perfect Binary Tree: All internal nodes have two children, and all leaves are at the same level.

Perfect Binary Tree

Balanced Binary Tree: The difference between the heights of the left and right subtrees of any node is not more than 1. A balanced tree ensures O(log n) time complexity for a few operations. Without balancing, a binary tree can degrade to a linked list, leading to O(n) operations.
Degenerate Tree (Skewed Tree): A tree where each parent has only one child, resembling a linked list.

Applications of Binary Trees

BSTs
Heaps (Binary heaps)
Expression Trees
Huffman Trees
Tries
Decision Trees

and more..

Construction of a Binary Tree

class TreeNode
{
    int data;
    TreeNode left;
    TreeNode right;
    TreeNode(int data)
    {
        this.data = data;
        this.left = null;
        this.right = null;
    }
}

public class BinaryTree
{
    public static void main(String[] args) {
        TreeNode root = new TreeNode(1);
        root.left = new TreeNode(2);
        root.right = new TreeNode(3);
        root.left.left = new TreeNode(4);
        root.left.right = new TreeNode(5);
        root.right.left = new TreeNode(6);
        root.right.right = new TreeNode(7);

        System.out.println("Preorder traversal of binary tree is ");
        preorder(root);

        System.out.println("Inorder traversal of binary tree is ");
        inorder(root);

        System.out.println("Postorder traversal of binary tree is ");
        postorder(root);
    }

    public static void inorder(TreeNode root)
    {
        if(root == null) return;
        inorder(root.left);
        System.out.println(root.data);
        inorder(root.right);
    }

    public static void preorder(TreeNode root)
    {
        if(root == null) return;
        System.out.println(root.data);
        preorder(root.left);
        preorder(root.right);
    }

    public static void postorder(TreeNode root)
    {
        if(root == null) return;
        postorder(root.left);
        postorder(root.right);
        System.out.println(root.data);
    }
}

Common Interview Questions

Invert Binary Tree — LeetCode

TreeNode invertTree(TreeNode node) {
    if (node == null) return null;
    TreeNode temp = node.left;
    node.left = node.right;
    node.right = temp;
    invertTree(node.left);
    invertTree(node.right);
    return node;
}

Balanced Binary Tree — LeetCode

boolean isBalanced(TreeNode node) {
    return height(node) != -1;
}

int height(TreeNode node) {
    if (node == null) return 0;
    int left = height(node.left);
    int right = height(node.right);
    if (left == -1 || right == -1 || Math.abs(left - right) > 1) return -1;
    return Math.max(left, right) + 1;
}

Diameter of Binary Tree — LeetCode

int diameter(TreeNode root) {
    int[] maxDiameter = new int[1];
    height(root, maxDiameter);
    return maxDiameter[0];
}

int height(TreeNode node, int[] maxDiameter) {
    if (node == null) return 0;
    int left = height(node.left, maxDiameter);
    int right = height(node.right, maxDiameter);
    maxDiameter[0] = Math.max(maxDiameter[0], left + right);
    return Math.max(left, right) + 1;
}

Maximum Depth of Binary Tree — LeetCode

int maxDepth(TreeNode node) {
    if (node == null) return 0;
    return Math.max(maxDepth(node.left), maxDepth(node.right)) + 1;
}

Same Tree — LeetCode

boolean isSameTree(TreeNode p, TreeNode q) {
    if (p == null && q == null) return true;
    if (p == null || q == null || p.val != q.val) return false;
    return isSameTree(p.left, q.left) && isSameTree(p.right, q.right);
}

Symmetric Tree — LeetCode

boolean isSameTree(TreeNode p, TreeNode q) {
    if (p == null && q == null) return true;
    if (p == null || q == null || p.val != q.val) return false;
    return isSameTree(p.left, q.left) && isSameTree(p.right, q.right);
}

Subtree of Another Tree — LeetCode

boolean isSubtree(TreeNode s, TreeNode t) {
    if (s == null) return false;
    if (isSameTree(s, t)) return true;
    return isSubtree(s.left, t) || isSubtree(s.right, t);
}

Binary Tree Level Order Traversal — LeetCode

List<List<Integer>> levelOrder(TreeNode root) {
    List<List<Integer>> result = new ArrayList<>();
    if (root == null) return result;
    Queue<TreeNode> queue = new LinkedList<>();
    queue.add(root);

    while (!queue.isEmpty()) {
        int size = queue.size();
        List<Integer> level = new ArrayList<>();
        for (int i = 0; i < size; i++) {
            TreeNode node = queue.poll();
            level.add(node.val);
            if (node.left != null) queue.add(node.left);
            if (node.right != null) queue.add(node.right);
        }
        result.add(level);
    }

    return result;
}

Lowest Common Ancestor of a Binary Tree — LeetCode

TreeNode lowestCommonAncestor(TreeNode root, TreeNode p, TreeNode q) {
    if (root == null || root == p || root == q) return root;
    TreeNode left = lowestCommonAncestor(root.left, p, q);
    TreeNode right = lowestCommonAncestor(root.right, p, q);
    if (left != null && right != null) return root;
    return left != null ? left : right;
}

Binary Tree Right Side View — LeetCode

List<Integer> rightSideView(TreeNode root) {
    List<Integer> result = new ArrayList<>();
    if (root == null) return result;
    Queue<TreeNode> queue = new LinkedList<>();
    queue.add(root);

    while (!queue.isEmpty()) {
        int size = queue.size();
        for (int i = 0; i < size; i++) {
            TreeNode node = queue.poll();
            if (i == size - 1) result.add(node.val);
            if (node.left != null) queue.add(node.left);
            if (node.right != null) queue.add(node.right);
        }
    }

    return result;
}

Construct Binary Tree from Preorder and Inorder Traversal — LeetCode

TreeNode buildTree(int[] preorder, int[] inorder) {
    return build(preorder, inorder, 0, 0, inorder.length - 1);
}

TreeNode build(int[] preorder, int[] inorder, int preStart, int inStart, int inEnd) {
    if (preStart >= preorder.length || inStart > inEnd) return null;
    TreeNode root = new TreeNode(preorder[preStart]);
    int inIndex = 0;
    for (int i = inStart; i <= inEnd; i++) {
        if (inorder[i] == root.val) inIndex = i;
    }
    root.left = build(preorder, inorder, preStart + 1, inStart, inIndex - 1);
    root.right = build(preorder, inorder, preStart + inIndex - inStart + 1, inIndex + 1, inEnd);
    return root;
}

Path Sum II — LeetCode

List<List<Integer>> pathSum(TreeNode root, int targetSum) {
    List<List<Integer>> result = new ArrayList<>();
    dfs(root, targetSum, new ArrayList<>(), result);
    return result;
}

void dfs(TreeNode node, int target, List<Integer> path, List<List<Integer>> result) {
    if (node == null) return;
    path.add(node.val);
    if (node.left == null && node.right == null && node.val == target) {
        result.add(new ArrayList<>(path));
    } else {
        dfs(node.left, target - node.val, path, result);
        dfs(node.right, target - node.val, path, result);
    }
    path.remove(path.size() - 1);
}

Maximum Width of Binary Tree — LeetCode

int widthOfBinaryTree(TreeNode root) {
    if (root == null) return 0;
    Queue<Pair<TreeNode, Integer>> queue = new LinkedList<>();
    queue.add(new Pair<>(root, 0));
    int maxWidth = 0;

    while (!queue.isEmpty()) {
        int size = queue.size();
        int min = queue.peek().getValue();
        int first = 0, last = 0;
        for (int i = 0; i < size; i++) {
            Pair<TreeNode, Integer> pair = queue.poll();
            TreeNode node = pair.getKey();
            int index = pair.getValue() - min;
            if (i == 0) first = index;
            if (i == size - 1) last = index;
            if (node.left != null) queue.add(new Pair<>(node.left, 2 * index));
            if (node.right != null) queue.add(new Pair<>(node.right, 2 * index + 1));
        }
        maxWidth = Math.max(maxWidth, last - first + 1);
    }

    return maxWidth;
}

Binary Tree Zigzag Level Order Traversal — LeetCode

List<List<Integer>> zigzagLevelOrder(TreeNode root) {
    List<List<Integer>> result = new ArrayList<>();
    if (root == null) return result;
    Queue<TreeNode> queue = new LinkedList<>();
    queue.add(root);
    boolean leftToRight = true;

    while (!queue.isEmpty()) {
        int size = queue.size();
        LinkedList<Integer> level = new LinkedList<>();
        for (int i = 0; i < size; i++) {
            TreeNode node = queue.poll();
            if (leftToRight) {
                level.addLast(node.val);
            } else {
                level.addFirst(node.val);
            }
            if (node.left != null) queue.add(node.left);
            if (node.right != null) queue.add(node.right);
        }
        result.add(level);
        leftToRight = !leftToRight;
    }

    return result;
}

Path Sum III — LeetCode

int pathSum(TreeNode root, int targetSum) {
    if (root == null) return 0;
    return countPaths(root, targetSum) + pathSum(root.left, targetSum) + pathSum(root.right, targetSum);
}

int countPaths(TreeNode node, int target) {
    if (node == null) return 0;
    int count = (node.val == target ? 1 : 0);
    count += countPaths(node.left, target - node.val);
    count += countPaths(node.right, target - node.val);
    return count;
}

All Nodes Distance K in Binary Tree — LeetCode

List<Integer> distanceK(TreeNode root, TreeNode target, int K) {
    Map<TreeNode, TreeNode> parentMap = new HashMap<>();
    findParents(root, null, parentMap);
    return findKDistanceNodes(target, K, parentMap);
}

void findParents(TreeNode node, TreeNode parent, Map<TreeNode, TreeNode> parentMap) {
    if (node != null) {
        parentMap.put(node, parent);
        findParents(node.left, node, parentMap);
        findParents(node.right, node, parentMap);
    }
}

List<Integer> findKDistanceNodes(TreeNode target, int K, Map<TreeNode, TreeNode> parentMap) {
    List<Integer> result = new ArrayList<>();
    Set<TreeNode> visited = new HashSet<>();
    Queue<TreeNode> queue = new LinkedList<>();
    queue.add(target);
    visited.add(target);
    int currentLevel = 0;

    while (!queue.isEmpty()) {
        int size = queue.size();
        if (currentLevel == K) {
            for (TreeNode node : queue) result.add(node.val);
            return result;
        }
        for (int i = 0; i < size; i++) {
            TreeNode node = queue.poll();
            if (node.left != null && visited.add(node.left)) queue.add(node.left);
            if (node.right != null && visited.add(node.right)) queue.add(node.right);
            TreeNode parent = parentMap.get(node);
            if (parent != null && visited.add(parent)) queue.add(parent);
        }
        currentLevel++;
    }

    return result;
}

Serialize and Deserialize Binary Tree — LeetCode

// Serialize
String serialize(TreeNode root) {
    if (root == null) return "null,";
    return root.val + "," + serialize(root.left) + serialize(root.right);
}

// Deserialize
TreeNode deserialize(String data) {
    Queue<String> nodes = new LinkedList<>(Arrays.asList(data.split(",")));
    return buildTree(nodes);
}

TreeNode buildTree(Queue<String> nodes) {
    String val = nodes.poll();
    if (val.equals("null")) return null;
    TreeNode node = new TreeNode(Integer.parseInt(val));
    node.left = buildTree(nodes);
    node.right = buildTree(nodes);
    return node;
}

Binary Tree Maximum Path Sum — LeetCode

int maxPathSum(TreeNode root) {
    int[] maxSum = new int[1];
    maxSum[0] = Integer.MIN_VALUE;
    findMax(root, maxSum);
    return maxSum[0];
}

int findMax(TreeNode node, int[] maxSum) {
    if (node == null) return 0;
    int left = Math.max(0, findMax(node.left, maxSum));
    int right = Math.max(0, findMax(node.right, maxSum));
    maxSum[0] = Math.max(maxSum[0], node.val + left + right);
    return node.val + Math.max(left, right);
}

All these questions can be found in Grind75 as well :)!

More articles to know deeper about Trees coming soon! Till then, Happy Diwali!

Love you all,

Harshpreet Singh
